The Xiros Mikro freeze dryer utilizes superior-performance vacuum technology fittings, valves, and connectors. The programmable settings were made with cannabis products in mind, allowing you to create recipes that can minimize terpene loss in your product.
The two pump options for the Xiros Mikro are:
Aether 8 Eco Oil Pump:
-Cost-effective
-Quality oil pump

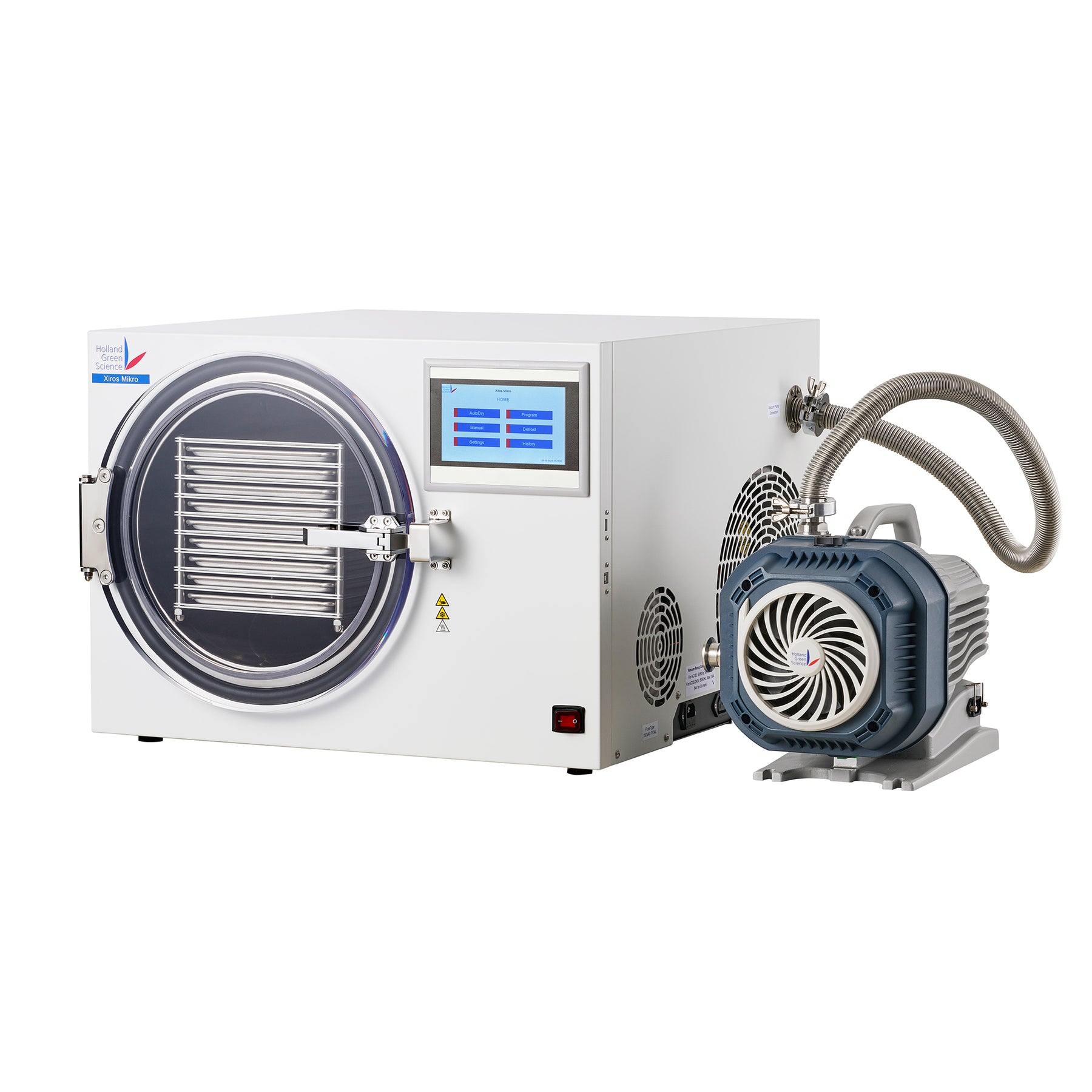

Anemos Scroll Pump:
-No mess or hassle with changing oil
-Less maintenance required
-Very quiet while operating
General:
- UL certified
- Market leading ice holding capacity for larger batches or longer defrost intervals
- Easy load due to low profile machine design
- High quality and performance components from leading suppliers
- Designed to run 24/7
- Superior performance vacuum technology fittings and connectors used (instead of refrigeration technology components)
- Commercial Grade 2 Year Warranty*
US Specifications:
- 9 shelves (US version)
- Ice Condenser Volume = 11L
- Ice Condenser Capacity = 8kg
- Ice Condenser Performance = 4kg in 24h
- Minimum Shelf Temperature for Freezing -45C
- Maximum Shelf Temperature for Drying +50C
- Typical Product Capacity = 9.6 kg at 80% moisture content
Controller:
- 5” color touchscreen
- Programmable to suit specific applications e.g. to reduce terpene loss
- Fully Manual Operation
- Automatic drying cycle
- USB connectivity for software upgrades and data logging
Technical details
| Xiros Mikro | |
| HGS SKU Number | 10107002 |
| Tray Size |
9-shelf tray: 200 x 450 x 12 mm 7-shelf tray: 200 x 450 x 15 mm 5-shelf tray: 200 x 450 x 20 mm 3-shelf tray: 200 x 450 x 20 mm |
| Shelf Distance |
9 shelves = 21 mm 7 shelves = 28 mm 5 shelves = 40 mm 3 shelves = 68 mm 1 shelf = 208 mm |
| Tray Spaces |
9 shelves: 8.72 sq ft 7 shelves: 6.78 sq ft 5 shelves: 4.84 sq ft |
| External Dimensions (mm) | 770 (D) x 748 (W) x 507 (H) |
| Weight | 87 kg |
| Total Condenser Capacity | 11 L / 2.9 Gallon |
| Ice Condenser Capacity | 8 kg |
| Condenser Performance | 4 kg per 24 hours |
| Ice Condenser Temperature | -40°C |
| Typical Product Capacity | 9.6 kg at 80% moisture |
| Shelf Stack Options | 9, 7, 5, 3,1 shelves |
| Shelf Stack Dimensions(mm) | 465 (L) x 210 (W) x 240 (H) |
| 9-shelf Stack Weight | 18.3 kg |
| 7-shelf Stack Weight | 14.8 kg |
| 5-shelf Stack Weight | 11.3 kg |
| 3-shelf Stack Weight | 7.8 kg |
| Electrical | 110V +/-10% 60Hz 8.5A |
| Maximum Pump Current | 3 A |
| Minimum Shelf Temperature | -35 °C |
| Maximum Shelf Temperature | +60 °C |
| Shelf Temperature Accuracy | +/- 3 °C |
| Noise Level(without pump) | 54 dB(A) |
| Ultimate Vacuum | 2.5 x 10-2 mbar |
